DKIM Signing for postfix mail server Ubuntu Server 12.04



DomainKeys Identified Mail (DKIM)

  Lets an organization take responsibility for a message that is in transit. The organization is a handler of the message, either as its originator or as an intermediary. Their reputation is the basis for evaluating whether to trust the message for further handling, such as delivery. Technically DKIM provides a method for validating a domain name identity that is associated with a message through cryptographic authentication.
In essence, it will help you to avoid going your mail into spam. Follow each steps remember to change example.com with your domain.
And selector with your selector(ie, any text).

1.Login to root and install opendkim

sudo su
   sudo apt-get install opendkim opendkim-tools

2.Making directory and generating keys

mkdir /etc/opendkim/
   cd /etc/opendkim
-s means selector so change the word after it we have to chose a selector, here selector
-d means domain so change the word after it as our need,here example.com
opendkim-genkey -s selector -d example.com

thus two files selector.txt selector.private are created

3.Adding user and making appropriate permissions

To check user a user ‘opendkim’ exists or not
grep opendkim /etc/passwd
Now run this also
chmod 700 /var/run/opendkim
If user is not already there we have to add the user
useradd -r -g opendkim -G mail -s /sbin/nologin -d /var/run/opendkim -c "OpenDKIM" opendkim
Change ownership to opendkim
chown opendkim:opendkim selector.private
To check the ownership of any file use also may use
ls -la /etc/opendkim | grep selector

4.Publishing DNS Record

cat selector.txt
On typing above command, you get a result like  this
selector._domainkey IN TXT "v=DKIM1; k=rsa; p=MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQC5N3lnvvrYgPCRSoqn+awTpE+iGYcKBabe8HHbcFfCIIVty76o4PhCoGZSaKVHOjDm4yefKXhQjM7iKzEPuBatE7O47hAx1CJpNuIdLxhILSbEmbMxJrJAG0HZVn8z6EAoOHZNaPHmK2h4UUrjOG8zA5BHfzJf7tGwI+K619fFUwIDAQAB" ; ----- DKIM key mail for example.com

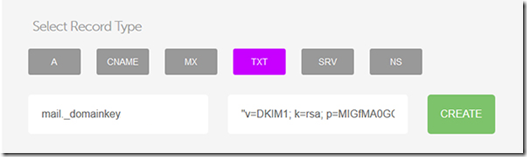

Add TXT record from your hosting websites (for example, digitalocean’s) control panel.  A
selector._domainkey
. In our case, copy
selector._domainkey
in name field copy the text included in “” (including “) to text field from above result. A selector mail is shown in example given below
To check the status of dns // or you can use http://dkimcore.org/tools/
dig selector._domainkey.example.com txt  +short
Test the key with server
opendkim-testkey -d example.com -s selector -k selector.private -vvv

5.Edit the OpenDKIM configuration file


cp /etc/opendkim.conf /etc/opendkim.conf.bk
nano /etc/opendkim.conf
cat /etc/opendkim.conf
On entering above command you can see my configuratoin of opendkim, # is used to comment
# Log to syslog
Syslog         yes
# Required to use local socket with MTAs that access the socket as a non-
# privileged user (e.g. Postfix)
UMask          022
# Sign for example.com with key in /etc/mail/dkim.key using
# selector '2007' (e.g. 2007._domainkey.example.com)
#Domain     example.com
#KeyFile     /etc/opendkim/key1.private
#Selector     key1
# Commonly-used options; the commented-out versions show the defaults.
Canonicalization     relaxed/simple
Mode             sv #s sign v verify
SubDomains          yes
#ADSPDiscard          no
# Log to syslog
Syslog              yes
SyslogSuccess          yes
LogWhy              yes
# Required to use local socket with MTAs that access the socket as a non-
# privileged user (e.g. Postfix)
UMask              022
UserID              opendkim:opendkim
#
KeyTable          /etc/opendkim/key
SigningTable          refile:/etc/opendkim/sign
ExternalIgnoreList     refile:/etc/opendkim/TrustedHosts
InternalHosts         refile:/etc/opendkim/TrustedHosts
# Hashing Algorithm
SignatureAlgorithm     rsa-sha256
#
Socket             inet:8891@localhost
# Always oversign From (sign using actual From and a null From to prevent
# malicious signatures header fields (From and/or others) between the signer
# and the verifier. From is oversigned by default in the Debian pacakge
# because it is often the identity key used by reputation systems and thus
# somewhat security sensitive.
OversignHeaders      From
# List domains to use for RFC 6541 DKIM Authorized Third-Party Signatures
# (ATPS) (experimental)
PidFile         /var/run/opendkim/opendkim.pid AutoRestart         Yes AutoRestartRate     10/1h #ATPSDomains         example.com #EOF

5.Working with text files (TrustedHosts,SigningTable,KeyTable)

Edit /etc/default/opendkim: Uncomment this row and use port 8891:

SOCKET="inet:8891@localhost" # listen on loopback on port

To allow connection through firewall

sudo iptables -A INPUT -i lo -j ACCEPT

Now create a file

nano /etc/opendkim/key

 And add the line

selector._domainkey.example.com example.com:selector:/etc/opendkim/selector.private

Create another file

nano /etc/opendkim/TrustedHosts

And add the following lines

127.0.0.1
localhost
example.com
*.example.com
123.123.123.123 #(IP address of your server, if applicable)

Create another file

nano /etc/opendkim/sign

And add the following line at end

*@example.com selector._domainkey.example.com

Take a backup of postfix configuration file, which may be useful incase any errors.

cp /etc/postfix/main.cf /etc/postfix/main.cf.bk

Edit /etc/postfix/main.cf and add the lines to the end

nano /etc/postfix/main.cf
milter_default_action = accept
milter_protocol = 2
smtpd_milters=inet:localhost:8891
non_smtpd_milters=inet:localhost:8891

6.Restart opendkim and postfix

service opendkim restart
service postfix restar
#also use service postfix status to check the status

Logs

#you can look at logs, THIS HIGHLY USEFUL
vim /var/log/mail.log
vim /var/log/mail.err

Now if we want many domains

Do replace example.com and selector for each domains
What we have to do is to
1. generate one more key
sudo su
cd /etc/opendkim
opendkim-genkey -s [selector] -d example.com
# replace both [selector] and      example.com with new selector and domain name
2. Change permission of generated key file
chown opendkim:opendkim [selector].private #[selector] we used in above step
3.add the details in TrustedHosts,SigningTable,KeyTable
Create the file
nano /etc/opendkim/key
And add the following line at end
        [selector]._domainkey.example.com example.com:[selector]:/etc/opendkim/[selector].private
Create the file
nano /etc/opendkim/sign
And add the following line
*@example.com
[selector]._domainkey.domain.com
Create the file
nano /etc/TrustedHosts
And add the following line
       *.domain.com
       domain.com
Also remember to restart opendkim and postfix each time.
service opendkim restart
sevice postfix restart
Finally send
or http://www.brandonchecketts.com/emailtest.php
or use http://www.mail-tester.com
to check the status of DKIM Signing by sending mails to these.

Reference

http://askubuntu.com/questions/134725/setup-dkim-domainkeys-for-ubuntu-postfix-and-mailman
(i started with this, then followed his reference )
http://stevejenkins.com/blog/2010/09/how-to-get-dkim-domainkeys-identified-mail-working-on-centos-5-5-and-postfix-using-opendkim/
(I think the best tutorial but on centos)
http://www.cioby.ro/linux/configuring-opendkim-to-sign-postfix-emails.html
http://linuxaria.com/howto/using-opendkim-to-sign-postfix-mails-on-debian

https://www.digitalocean.com/community/tutorials/how-to-install-and-configure-dkim-with-postfix-on-debian-wheezy
(TXT related portion is misleading)
